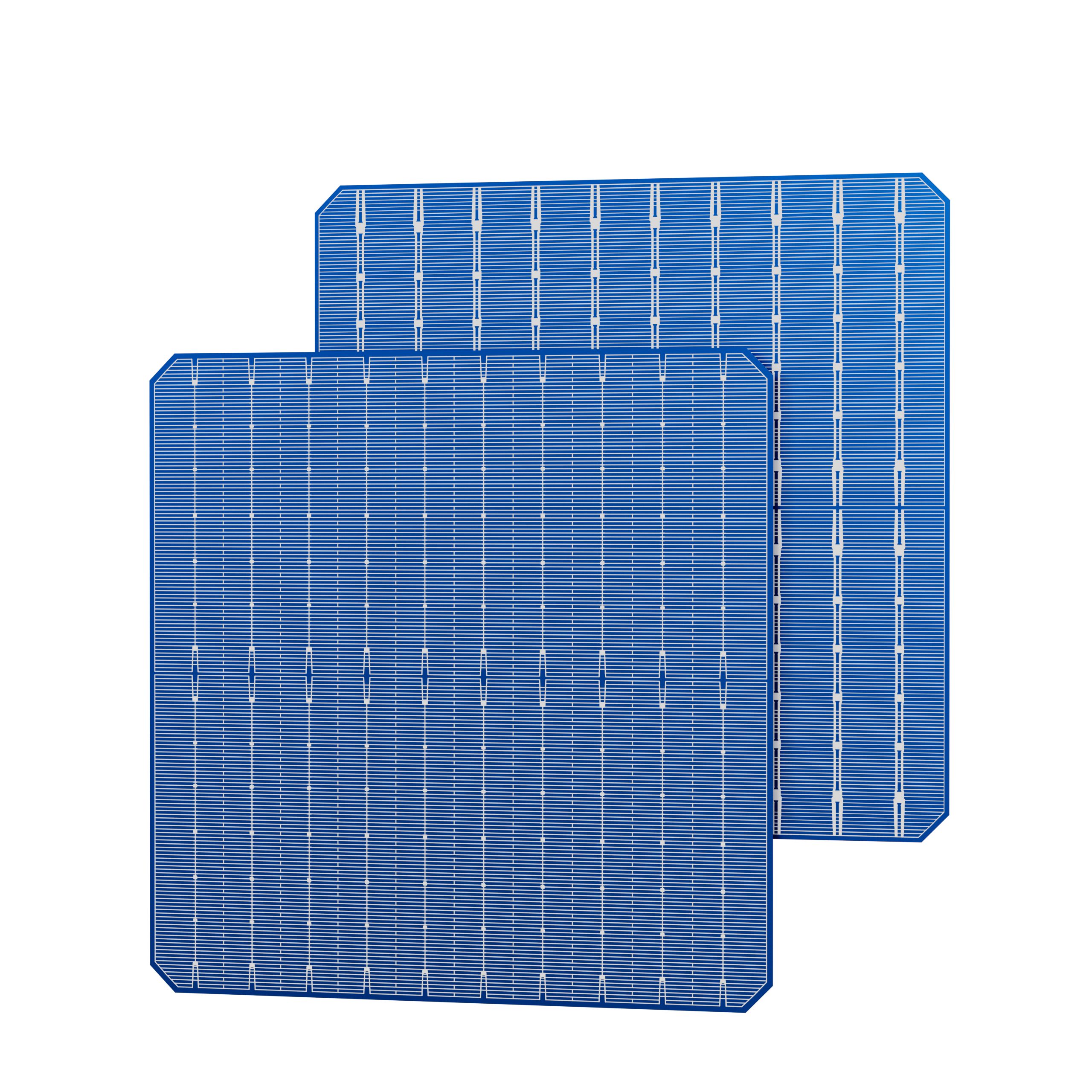

Silicon Type/thickness : Mono-crystalline/165±25μm
Size : 182.2 x 182.2 ± 0.25 Φ 247mm
Front Pattern : 10 busbar,fingers:170 Main busbar distance :17.3mm
Back Pattern : 10 busbar,fingers:200 soldering busbar width :1.4/1.2mm,1/0.8mm Main busbar Width:0.55/0.4mm Fingers distance 0.9065mm
| Eff (%) | Efficiency | Pmpp (w) | Impp(A) | Umpp(v) | Isc(A) | Uoc (v) |
|---|---|---|---|---|---|---|
| 23.6 | 23.76-23.96 | 7.79 | 12.983 | 0.600 | 13.584 | 0.698 |
| 23.5 | 23.66-23.76 | 7.76 | 12.950 | 0.599 | 13.579 | 0.697 |
| 23.4 | 23.56-23. 66 | 7.72 | 12.910 | 0.598 | 13.541 | 0.696 |
| 23.3 | 23.46-23.56 | 7.69 | 12.881 | 0.597 | 13.502 | 0.695 |
| 23.2 | 23.34-23.46 | 7.66 | 12.852 | 0.596 | 13.463 | 0.694 |
| 23.1 | 23.21-23.34 | 7.63 | 12.824 | 0.595 | 13.425 | 0.693 |
| 23 | 23.11-23.21 | 7.59 | 12.778 | 0.594 | 13.386 | 0.692 |
| 22.9 | 23.00-23.11 | 7.56 | 12.749 | 0.593 | 13.287 | 0.691 |
| 22.6 | 22.69-22.79 | 7.46 | 12.644 | 0.590 | 13.226 | 0.688 |
| 22.5 | 22.59-22.69 | 7.43 | 12.615 | 0.589 | 13.187 | 0.687 |
| 22.4 | 22.49-22.59 | 7.39 | 12.568 | 0.588 | 13.147 | 0. 686 |
