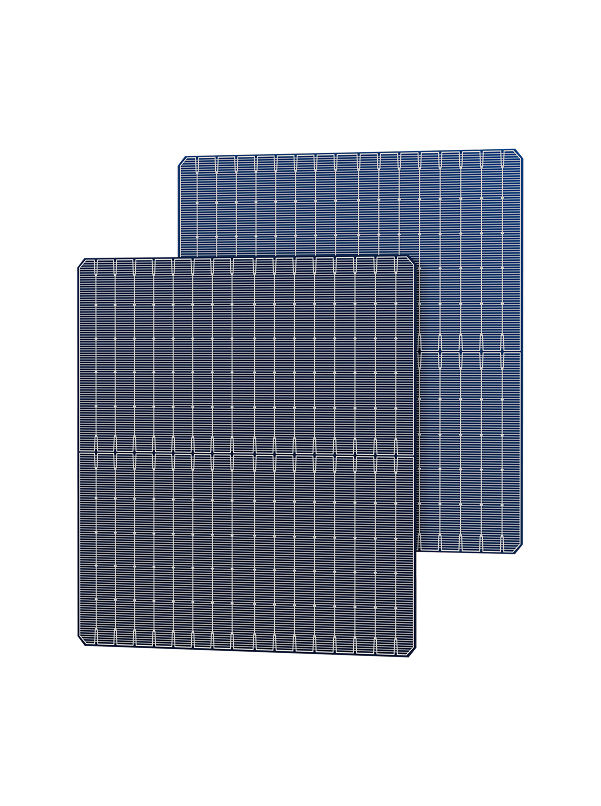

Silicon Type/thickness : Mono-crystalline/130±13μm
Size : 182.3*210 Φ 272± 0.25mm
Front Pattern : 16 busbar ,fingers:186 Main busbar distance :10.8± 0.15mm soldering busbar width :1.2/0.8± 0.15mm
Back Pattern : 16 busbar ,fingers:192 Main busbar distance :10.8± 0.15mm soldering busbar width :1.2/0.8± 0.15mm
| Eff (%) | Efficiency | Pmpp (w) | Impp(A) | Umpp(v) | Isc(A) | Uoc (v) |
|---|---|---|---|---|---|---|
| 25.2 | 25.2-25.3 | 9.62 | 14. 25 | 0.675 | 14.25 | 0.7364 |
| 25.1 | 25.1-25.2 | 9.58 | 14.23 | 0.673 | 14.24 | 0.7353 |
| 25 | 25.0-25.1 | 9.55 | 14.23 | 0.671 | 14.22 | 0. 7343 |
| 24.9 | 24.9-25.0 | 9.51 | 14.19 | 0.67 | 14.19 | 0.7333 |
| 24.8 | 24.8-24.9 | 9.47 | 14.16 | 0.669 | 14.11 | 0.7322 |
| 24.7 | 24.7-24.8 | 9.43 | 14.16 | 0.666 | 14.1 | 0.7312 |
| 24.6 | 24.6-24.7 | 9.39 | 14.10 | 0.6659 | 14. 09 | 0.7302 |
| 24.5 | 24.5-24.6 | 9.36 | 14. 06 | 0.6657 | 14.06 | 0.7291 |
| 24.4 | 24.4-24.5 | 9.32 | 14. 00 | 0.6655 | 14.05 | 0. 7281 |
| 24.3 | 24.3-24.4 | 9.28 | 13. 95 | 0.6651 | 14.04 | 0.7271 |
| 24.2 | 24.2-24.3 | 9.24 | 13. 89 | 0.665 | 14.03 | 0.7261 |
