Advanced Technology : Embracing N – type Cells and a Novel product technology platform. The mass production efficiency and reliability are leading in the industry.
Exceptional Performance : Leveraging Two – color, High – reflection Black Encapsulation Materials to Maximize Light Energy Utilization Rate.

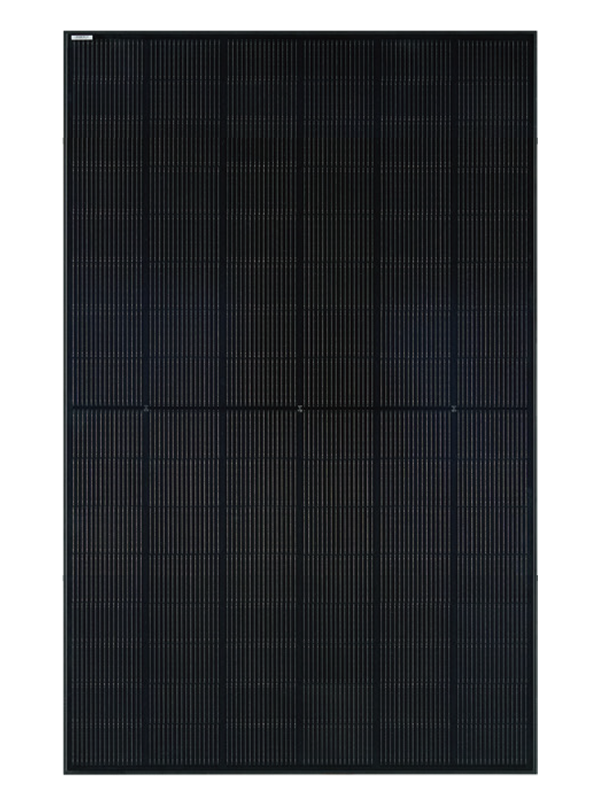

Aesthetics : A Captivating All – black Design That Effortlessly Blends with
Buildings, with an Area of 2 Square meter.
Solid Quality, Steady Reliability : Double – glass Design, Exhibiting Strong Resistance to Water Vapor and Guaranteeing Long – term Reliability.
| Solar Cell | Mono N-Type 182*210mm |
| No. of Cells | 96 (6 × 16) |
| Dimensions | 1762 × 1134 × 30mm(69.37 x 44.65 x 1.18in) |
| Weight | 25kg(55.12Ibs) |
| Junction Box | IP68 rated (3 bypass diodes) |
| Output Cable | 4mm² (IEC), 12 AWG(UL) ±1200mm(47.24in.) or customized |
| Connector | EVO2 or similar |
| Front Cover | 2.0mm AR coated heat strengthened glass |
| Back Cover | 2.0mm heat strengthened glass |
| Frame | Aluminum, Black anodized |
| Container | 36 pcs/Pallet, 936 pcs/40' HQ(Global) ,756 pcs/40' HQ(US) |
| Max. System Voltage | DC 1500V（IEC/UL） |
| Operating Temperature | 40°C ~ +85°C(-40℉ ~ +185℉) |
| Max. Fuse Rating | 35A |
| Frontside Max. Loading | 5400Pa(112lb/ft²) |
| Backside Max. Loading | 2400Pa(50lb/ft²) |
| Hail test | 35mm, 27.2m/s |
| Fire Resistance | IEC Class A/ UL type 29 |
| Product Workmanship Warranty | 15/25 Years |
| Linear Power Output Warranty | 30 Years |
| First Year Degradation | 1% |
| Annual Power Degradation | 0.4% |
